performance index

Rated capacity: 30kvar, 50kvar, 100kvar

Overall efficiency: up to 99%

Reactive power compensation: adjustable from -1 to 1

Unbalance compensation: supported

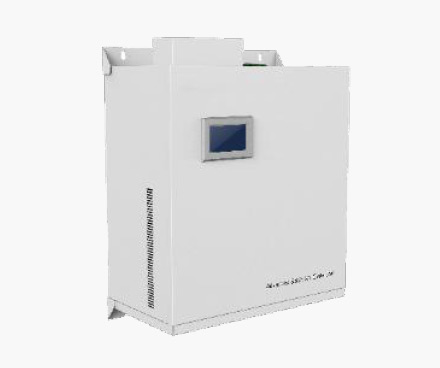

Harmonic compensation: ASVG supports (3rd, 5th, 7th, 9th, 11th, 13th order) SVG does not have harmonic compensation function

Switching frequency: average 40kHz

Noise index: ＜ 65db

system parameter

Rated input line voltage: AC380V (-40%~+20%)

Grid frequency: 50Hz/60Hz (range: 45Hz~62.5Hz)

Number of single monitoring control units: ≤ 16 units

Grid frequency: three-phase three wire, three-phase four wire

CT range: 0~30000/5 can be set

CT hanging method: supports source side and load side

Communication display

Communication interface: RS485

Communication protocol: Modbus protocol

Display interface: 4.3-inch/7-inch touch screen

mechanical properties

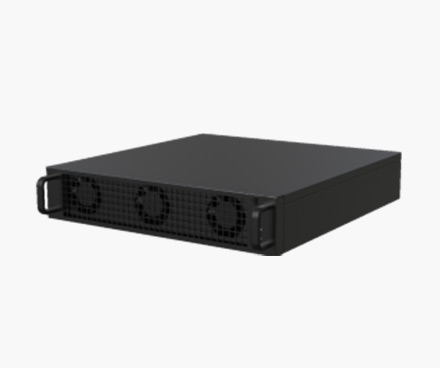

Installation method: wall mounted/rack mounted

Size: 150A: W * D * H=500mm * 520mm * 100mm/100A: W * D * H=500mm * 520mm * 88mm

Color: Color
